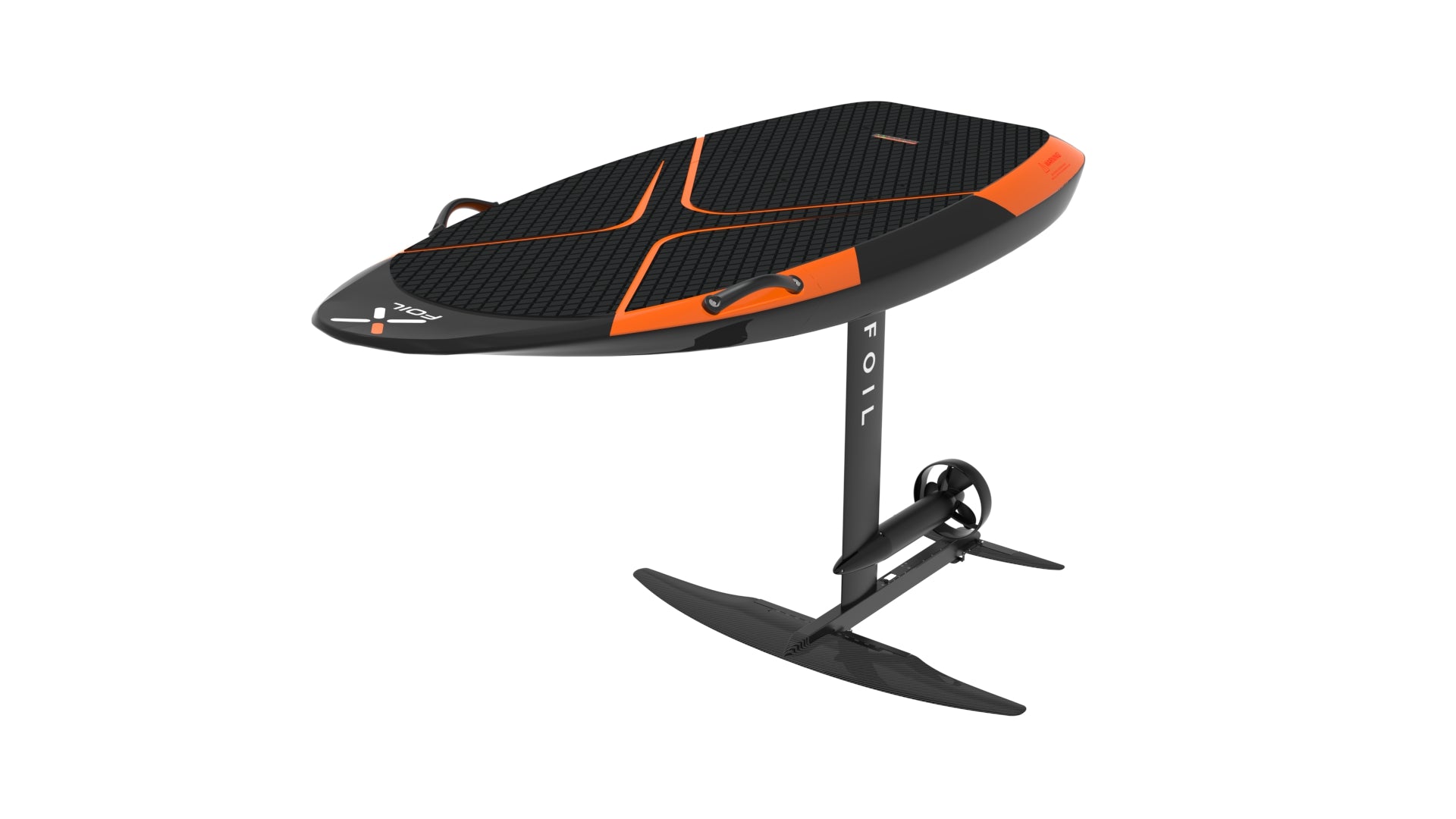

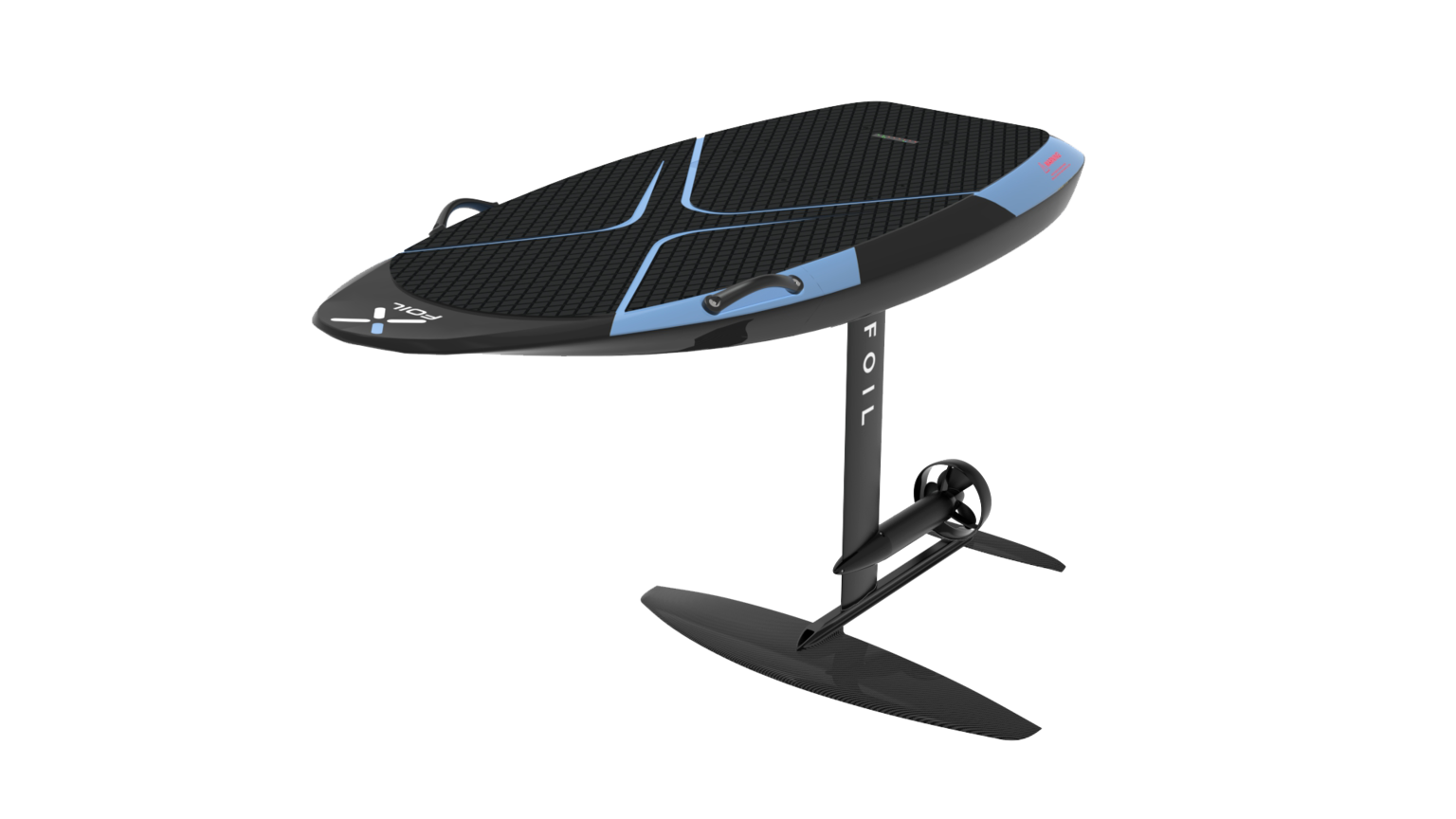

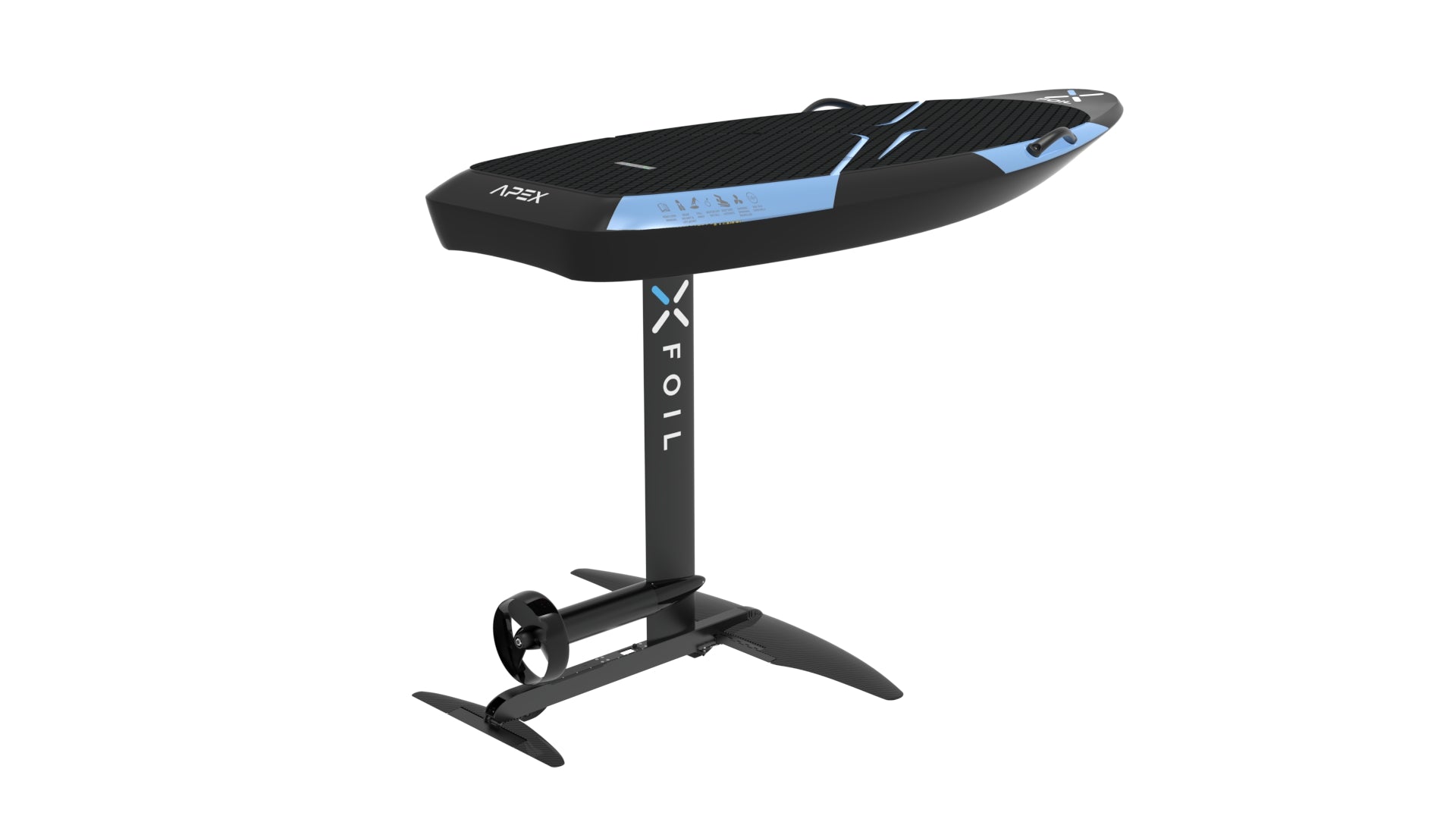

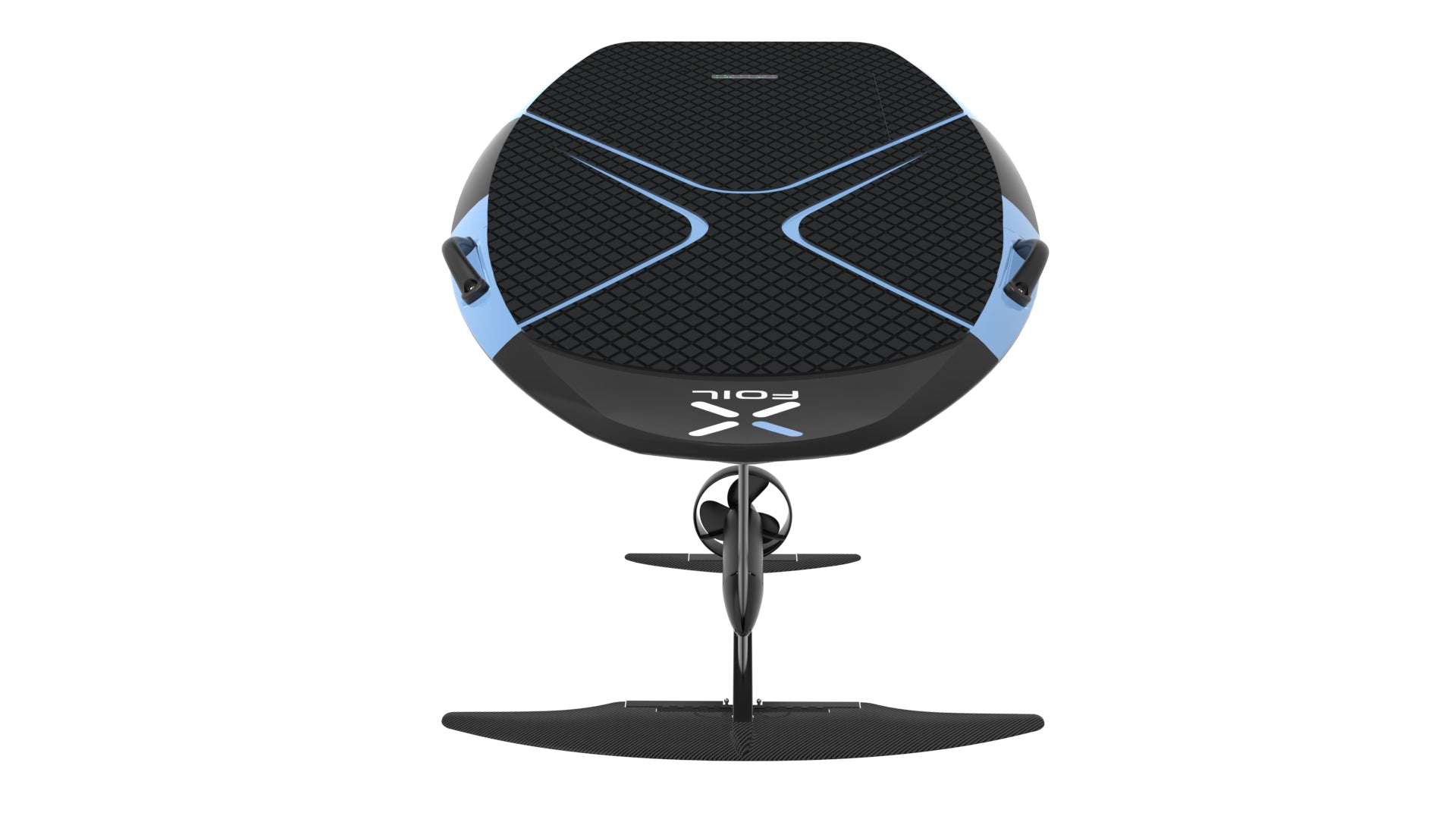

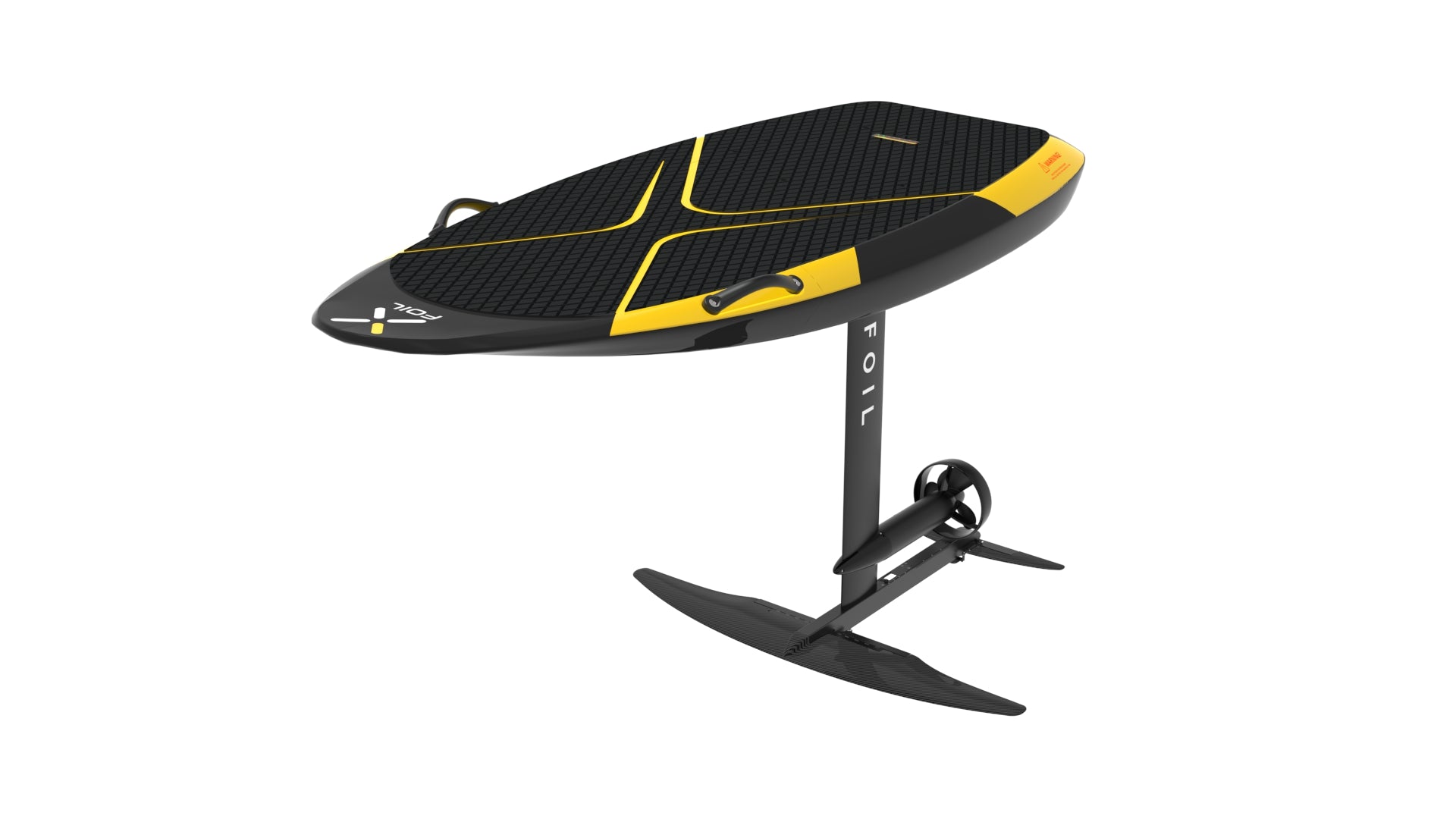

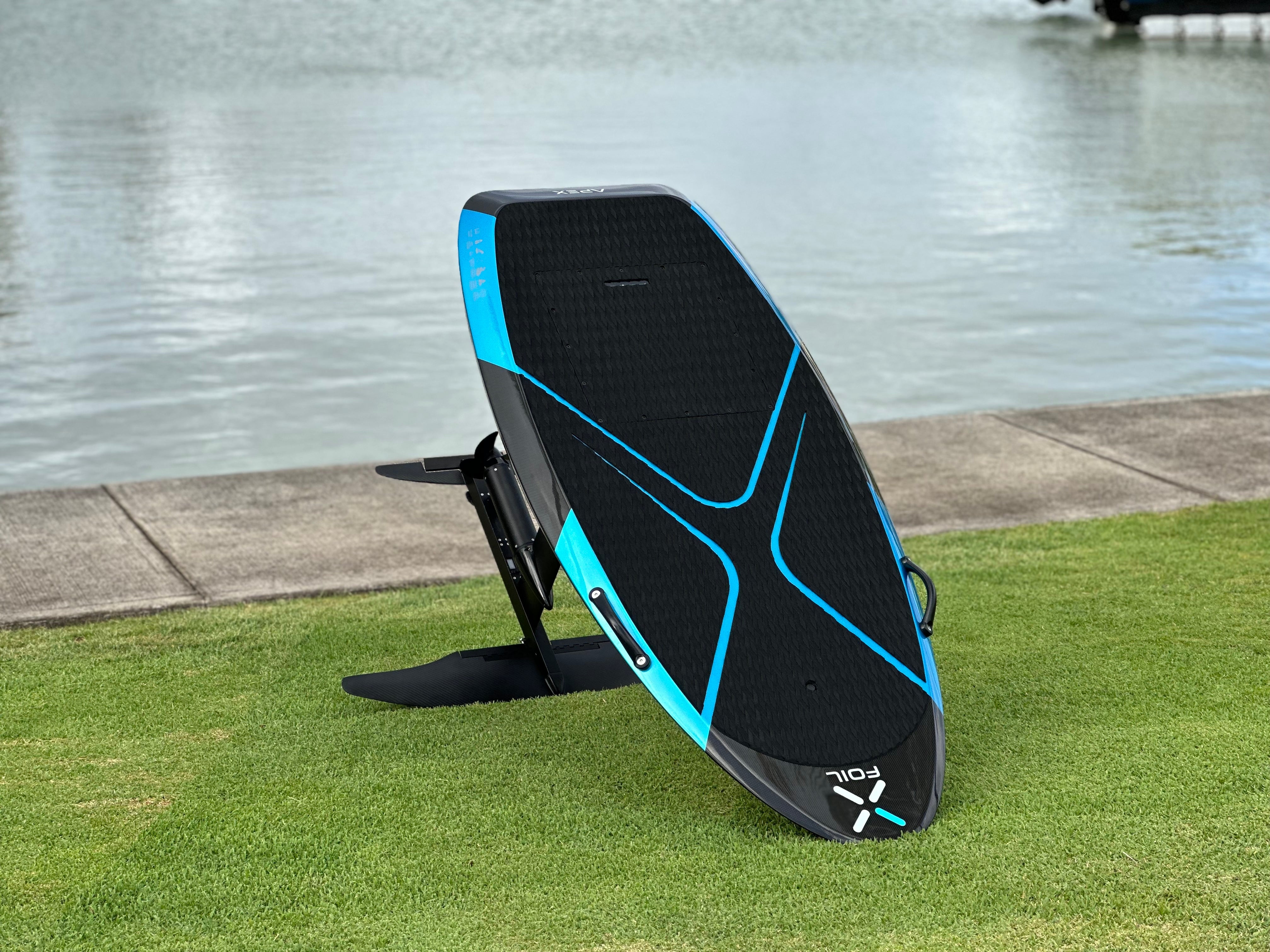

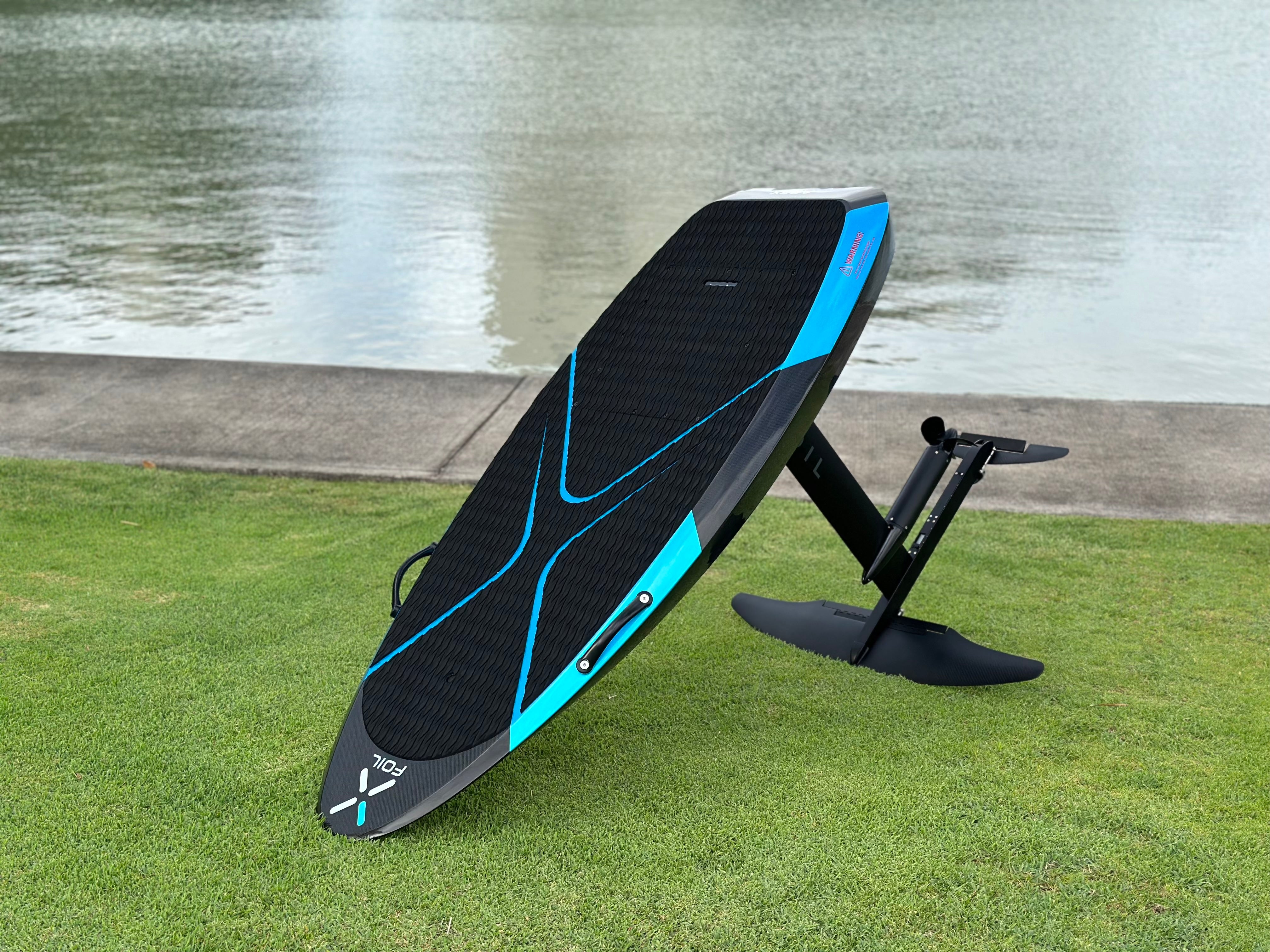

APEX
Premium, lightweight composite electric hydrofoil featuring a whisper-quiet silent drive and cutting-edge active stabilization for a seamless flight over water.
Factory Included
Cont. US / EU / UK / AU
Risk-Free Inspection
Questions? Contact us Mon – Fri, 8AM – 5PM PST
See The Difference
Legacy eFoils rely on passive balance, forcing the rider to absorb pitch instability and rough chop in real-world riding conditions. XFOIL introduces active control technology, a fundamental shift in watercraft engineering that predicts water variance for an effortlessly smooth, superior ride.
Apex Overview
Stable. Fast. Built to Fly.
The Apex is XFoil's premier high-stability performance board, built for riders who want premium engineering, confident handling, and factory-direct value.
30+ MPH Top Speed
Built for fast, smooth, and responsive riding with a top speed of up to 30+ mph.
Up to 2 Hours Runtime
Choose from standard or long-range battery options for extended time on the water.
6,000W Direct Drive
A quiet, direct-drive propulsion system with no gearbox for a simpler, smoother ride.

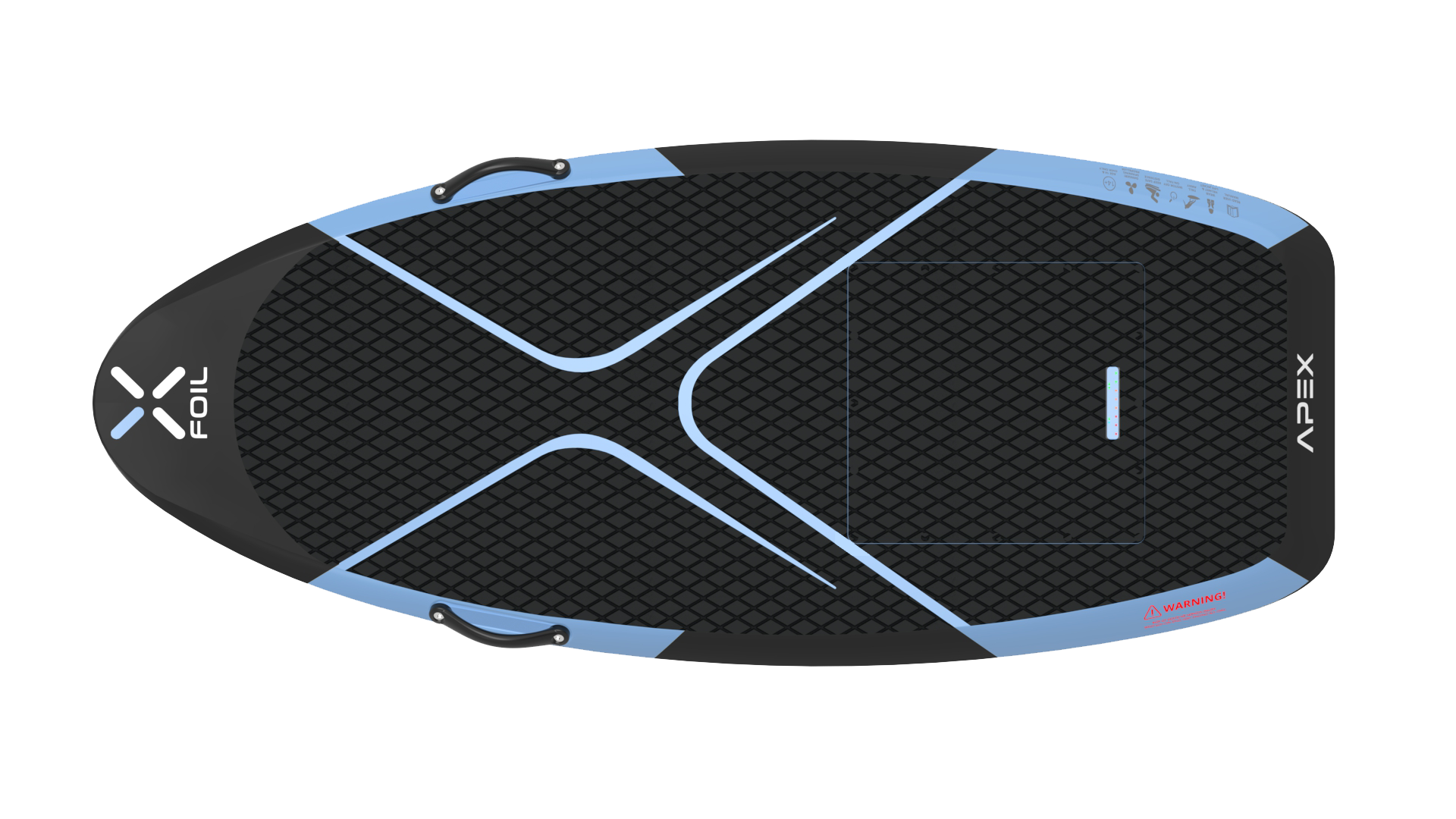

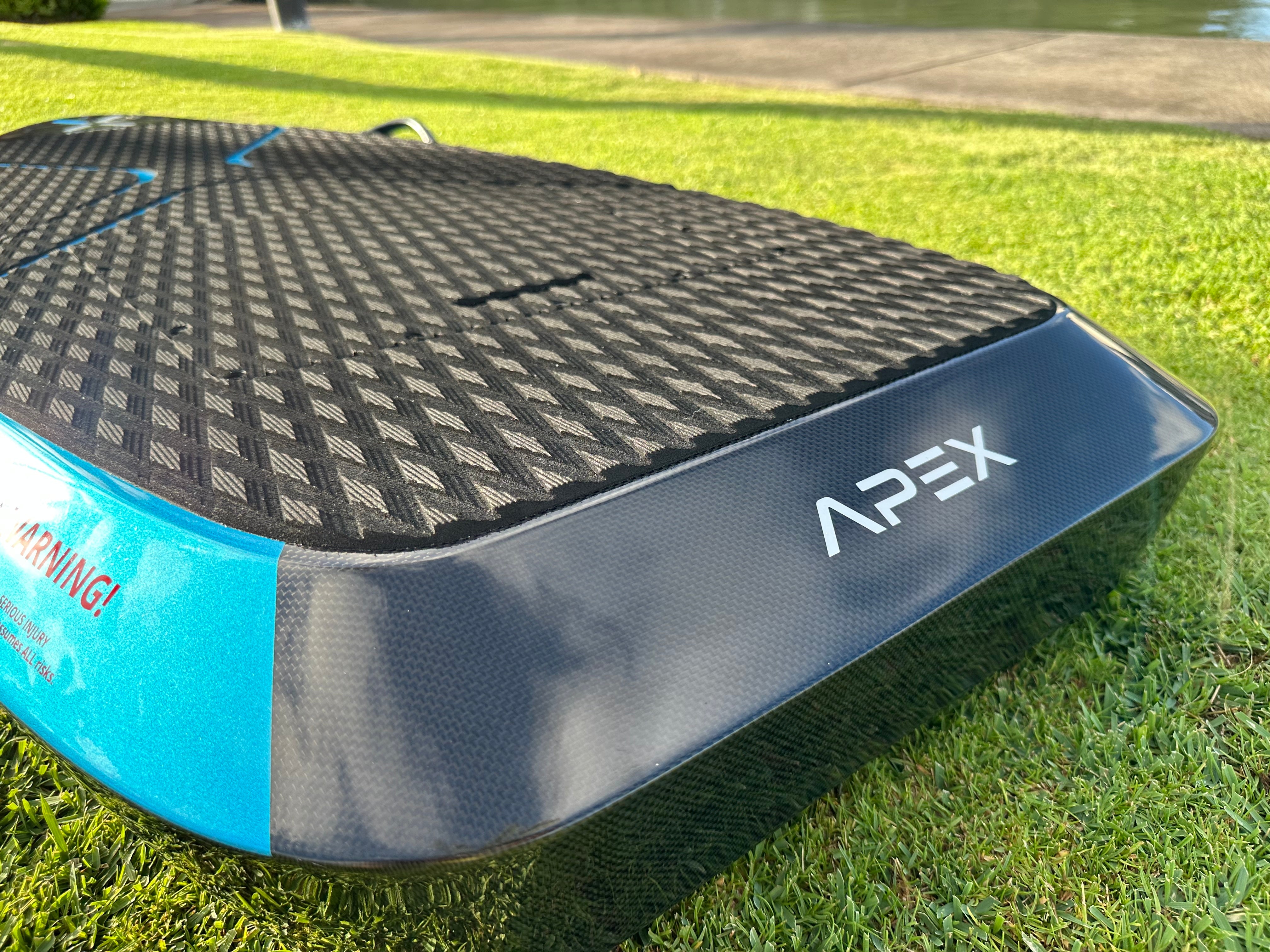

Stable 100L Board
A perfectly balanced platform designed for agile carving and responsive, stable control.
Composite Construction
Carbon fiber / fiberglass construction delivers a strong, lightweight, premium board feel.
Protected Battery System
A double-redundancy waterproof battery box helps protect the board's power system on the water.

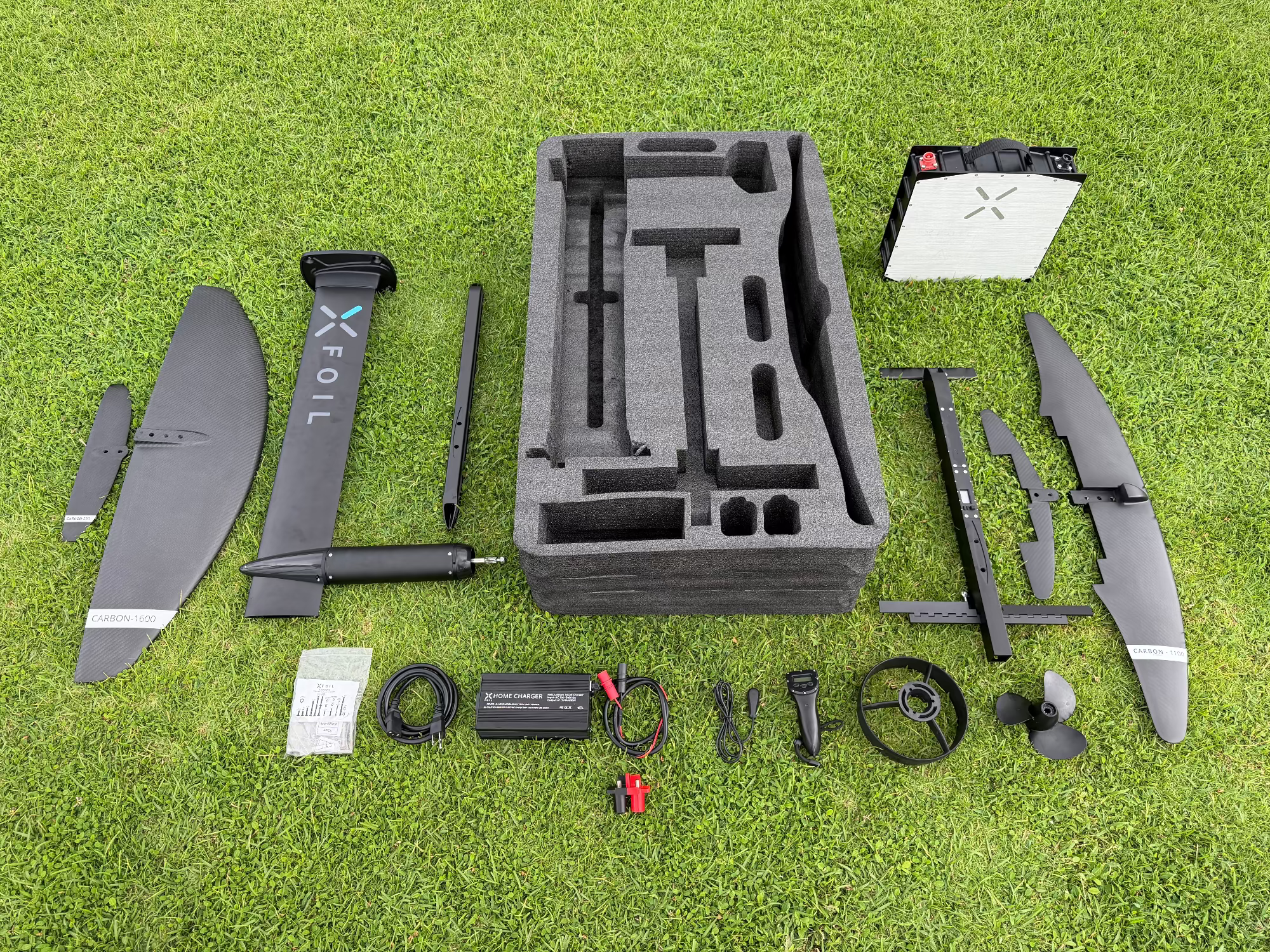

What's Included
Everything You Need to Start Riding.
Your Apex package includes the board, propulsion system, foil system, battery, remote, travel protection, and hardware needed to get on the water.

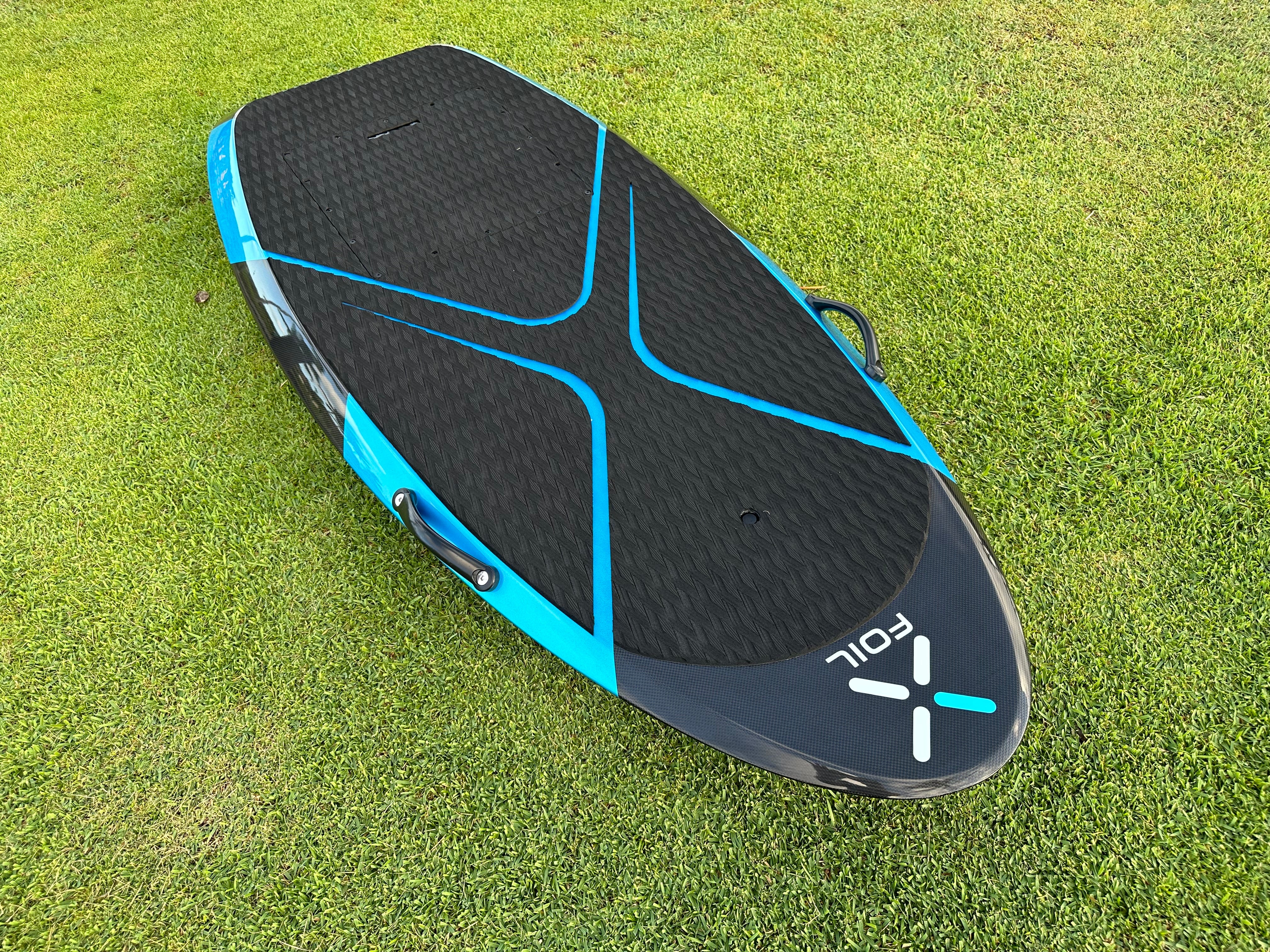

Apex Composite Board (CF/FG)
Precision-molded core engineering providing maximum rigidity and impact resistance.
Lithium Battery System
High-capacity power cells built into our double-redundancy waterproof system shell.
Lithium Battery Charger
Rapid smart balance charger compatible globally with standard 110VAC - 230VAC lines.
6061-T6 Aluminum Mast & Motor
Aircraft-grade anodized mast with seamlessly integrated direct drive motor housing.
Propeller
Hydrodynamically optimized precision propulsion blade profile for fluid drive efficiency.
Propeller Guard
Rugged impact-resistant safety ring shroud protecting internal foil assembly areas.
Nano Remote & Charging Cable
Ergonomic wireless throttle controller accompanied by dedicated balance charging wire.
Carbon Fiber Wing & Tail Set
High-modulus carbon fiber composite front main wing matched with stabilizer wing.
316 Stainless Fasteners, Tools & Foam

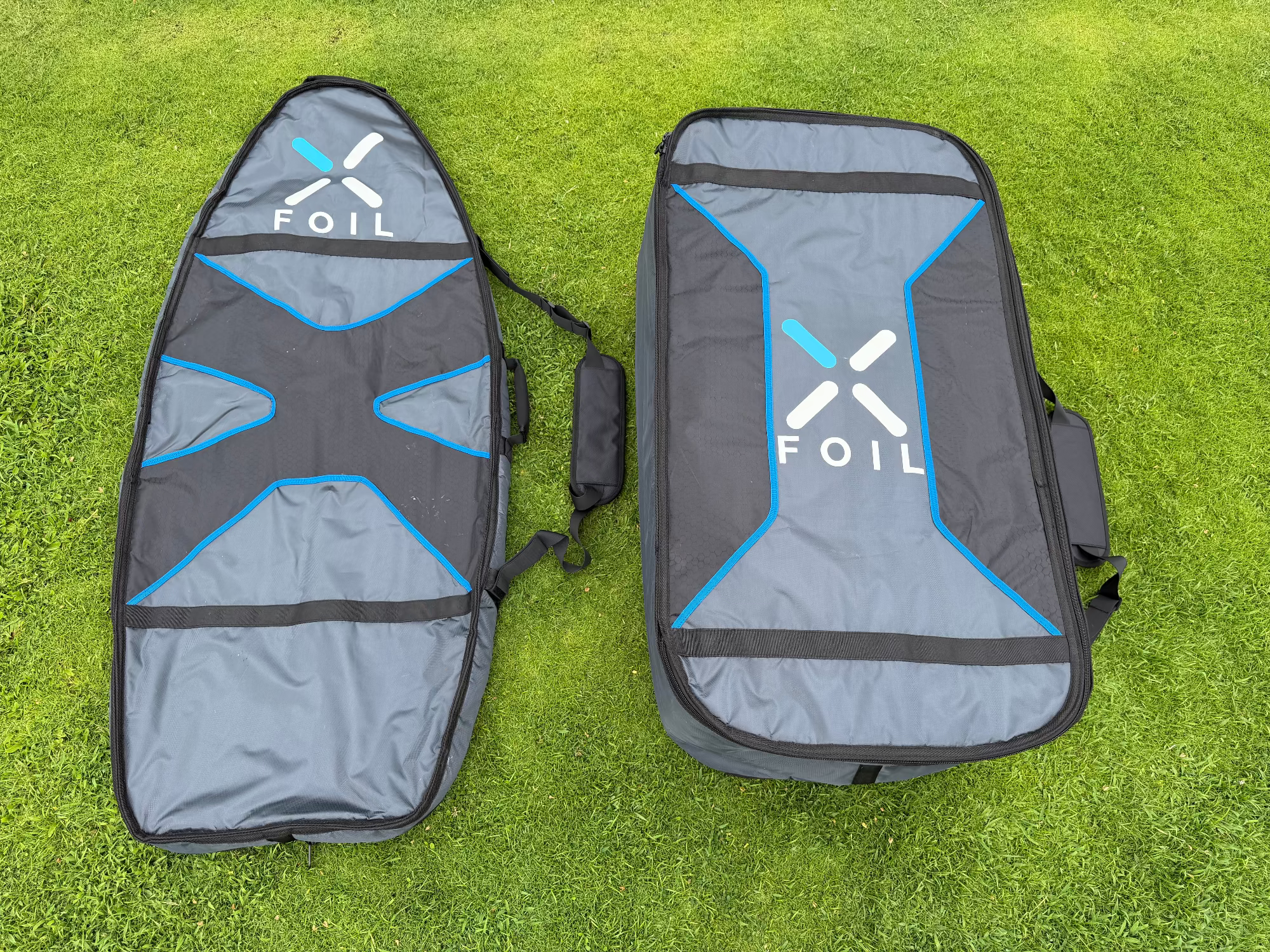

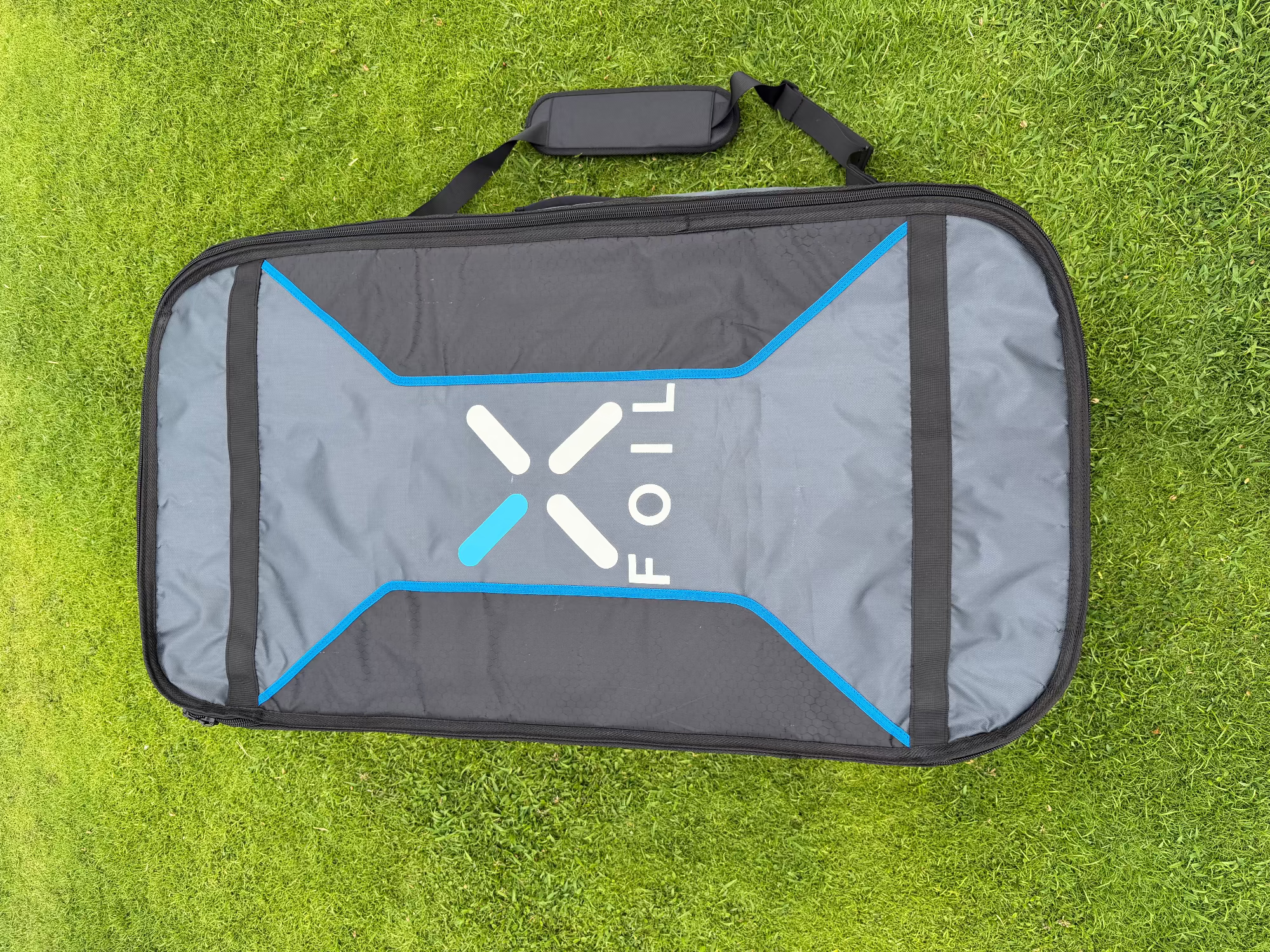

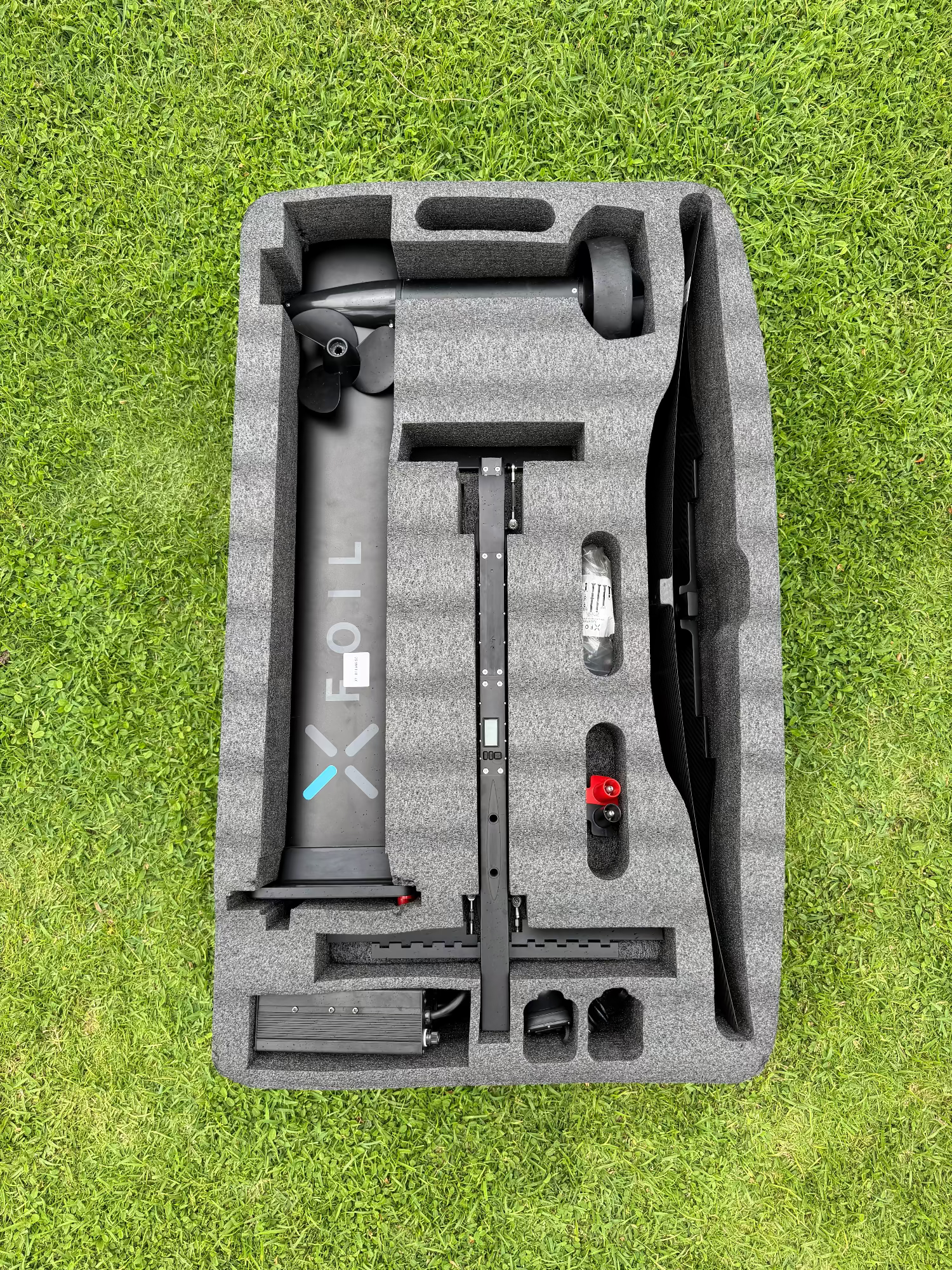

Complete marine-grade hardware set and assembly tools, packed cleanly inside a custom protective EVA travel foam kit.
Apex Technical Specifications
Built Stable. Built Fast. Built to Fly.
Complete Apex specifications for board profile, performance, flight stabilization, battery architecture, mast configuration, electronics, and cooling.
| Board Profile | |
| Board Size & Volume | 65" x 28" x 5.2" (164 x 71 x 13 cm) — 100L |
| Board Material | Carbon Fiber / Fiberglass |
| Board Features | Easy Carry Handles, Integrated Battery Architecture, Stable Performance Shape |

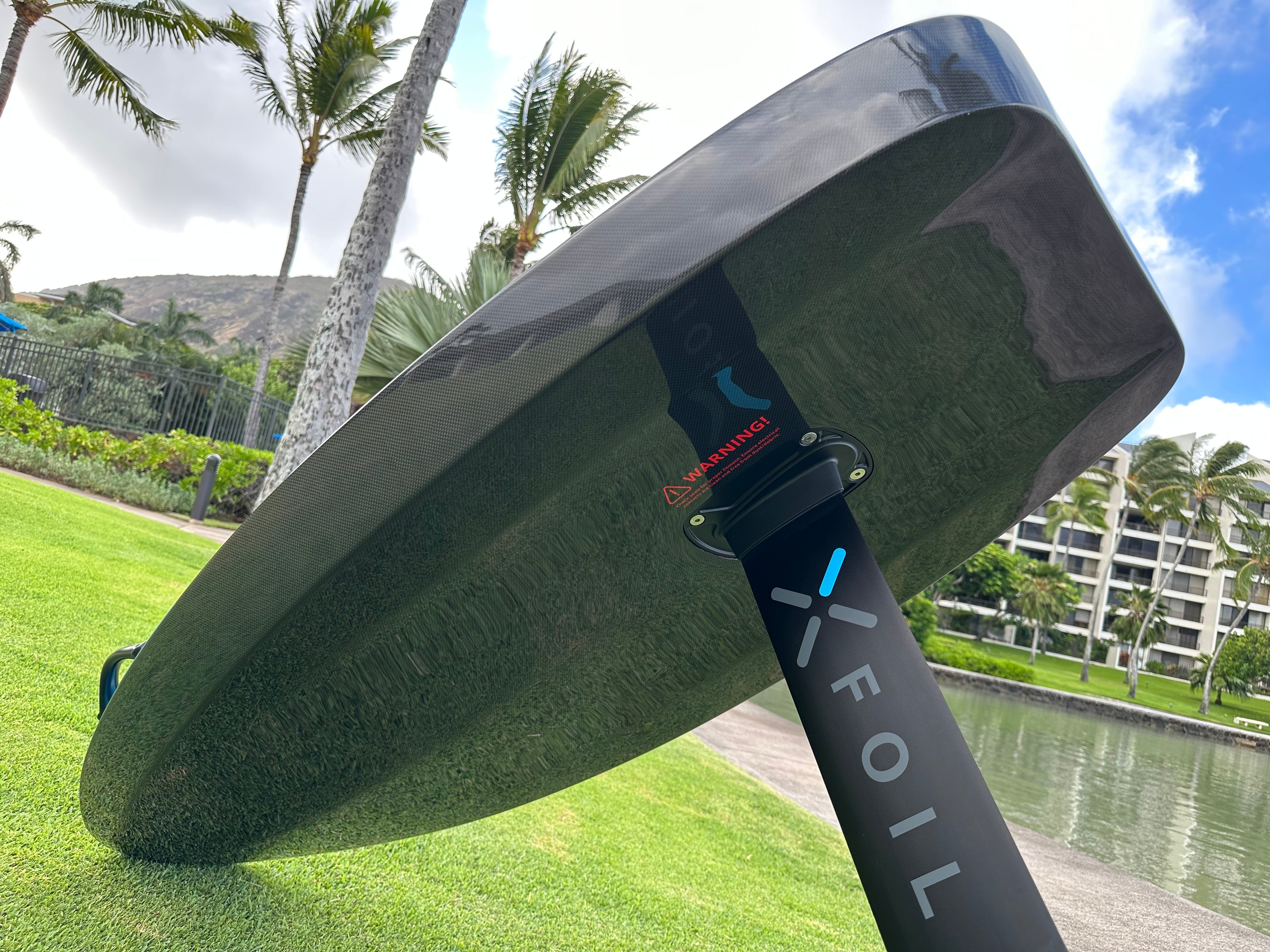

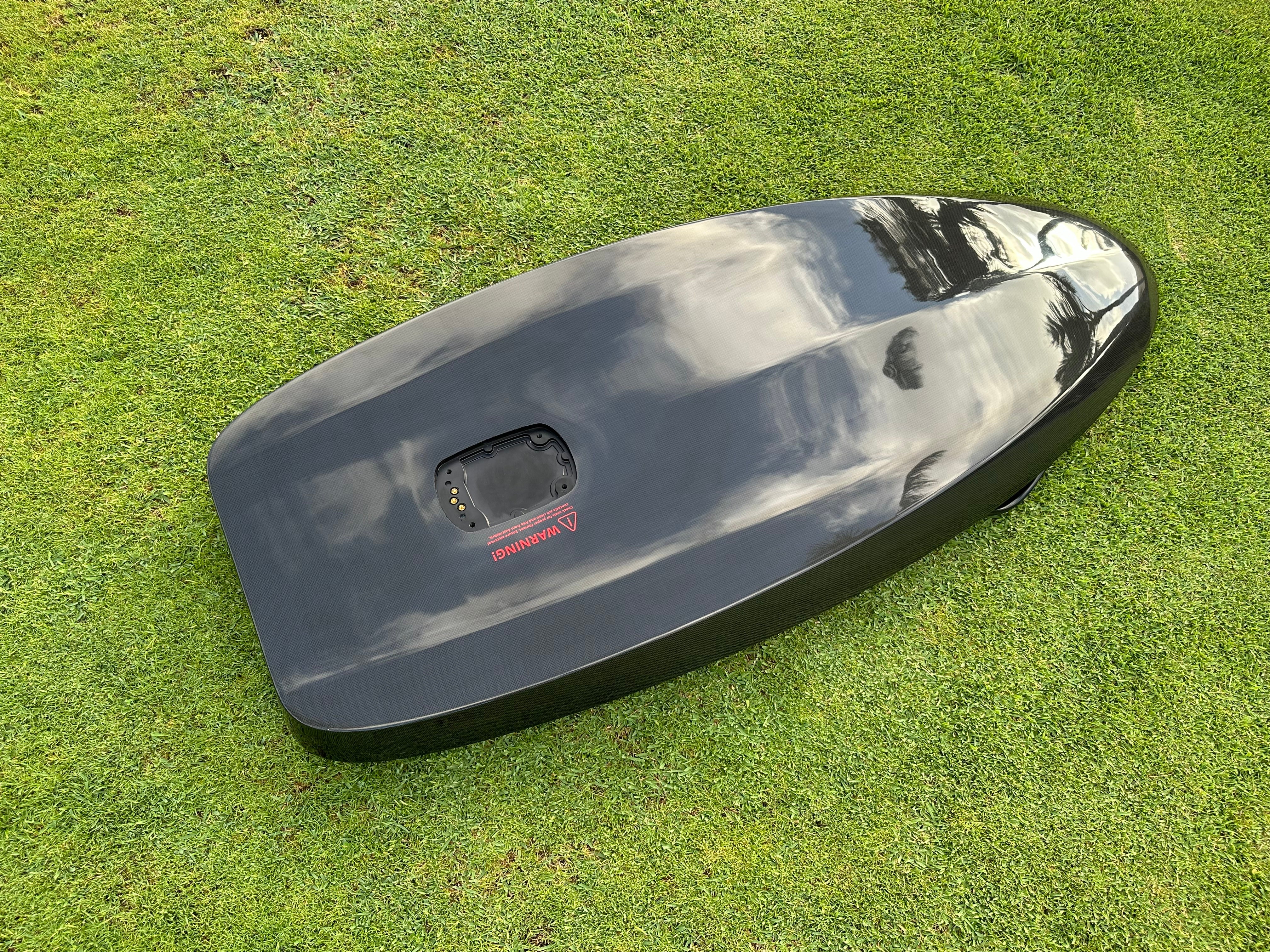

| Board Underbody Geometry | Tip V-Nose, Mid Double Concave, Tail Single Concave |
| Board Weight Without Battery | 28 lbs |
| Total Setup Weight With 1-Hour Battery | 62.2 lbs |
| Performance | |
| Max Power | 6,000W |
| Run Time | Up to 2 Hours |
| Top Speed | 30+ mph |
| Max Rider Weight | Up to 265 lbs (120 kg) |
| Ride Configuration | Dual Mode (Fly and Surface Mode) |
| Flight Stabilization | |
| Active Thrust Stabilization | ✓ Standard |
| Adaptive Active Dynamic Wings | Optional Add-On |
| Battery Architecture | |
| Battery Sizes Available | 1,243 Wh Standard / 1,894 Wh Long-Range |
| Battery Configuration | Installed in-board battery system with double-redundancy waterproof battery box |
| Charging | 600W Charger |
| Charging Access | Charge directly through the board charging port |
| Mast & Foil Configuration | |
| Base Mast & Fuselage | Aircraft-Grade 6061-T6 Anodized Aluminum |
| Mast Options | Flight Mast |
| Wing & Tail Foil Construction | High-Density Carbon Fiber |
| Fasteners | 316 Stainless Steel Hardware |
| Electronics & Cooling | |
| Motor Controller / ESC | Miniaturized & Built Into Motor Housing — 75V, 100A Continuous, 150A Peak |
| Cooling System | Direct Water-Immersed Cooling |
| Included Riding Hardware | |
| Propeller Guard | ✓ Included |
| Nano Controller Remote | ✓ Included |
*Note: Due to continuous product improvement and engineering refinements, final technical specifications, components, and product details may differ slightly from the actual product received.
Safety Architecture
Designed for Confidence on the Water.
Apex is built with layered protection systems for waterproofing, rider safety, motor protection, and recovery support.
Double-Layer Waterproofing
Layered waterproof protection helps defend critical internal systems from water exposure during marine use.
Clear Inspection Window
A clear inspection window gives riders a fast visual check point for added confidence before and after riding.
Board Angle Detection Shutdown
The system can detect abnormal board angle conditions and shut down to help reduce unsafe operation.
Instant Shutdown
Designed to cut power immediately when shutdown conditions are triggered.
Anti-Runaway System
Helps prevent the board from continuing uncontrolled if the rider separates from the board.
Auto Power-Off on Fall
Automatically cuts power when a fall or separation event is detected.
Self-Rescue Mode
Provides added support for controlled recovery situations if a remote malfunction occurs.
Anti-Propeller Cavitation Recovery
Helps the propulsion system recover more smoothly if cavitation interrupts thrust delivery.
Propeller Guard Included
The propeller guard is included as standard for added rider confidence during setup, learning, and riding.
Overheat Protection
Built-in protection helps manage thermal conditions and protect the propulsion electronics.
Overcurrent Protection
Electronic safeguards help protect the system from excessive current conditions.
WHAT RIDERS SAY
Paul McDonnell
Oahu, Hawaii • Verified Rider
Smooth, intuitive, and powerful. I recorded the fastest lap of the day against more expensive boards. The xFoil dominated the entire field.
Joshua Adam
Sydney, Australia • Kickstarter Community
After meticulously vetting every competitive platform on the market, the technical specifications of the XFoil matched or exceeded the highest-tier options available—all while offering an unmatched value proposition that saved me thousands.
James Dvorak
Maui, Hawaii • EFoil Community Leader
Your equipment worked flawlessly — awesome foils! The build quality at this price point is genuinely hard to believe. Feels like a board costing three times as much.
FAQ
COMMON QUESTIONS
How does the Apex compare to the Escape?
The Apex is our largest, most capable eFoil, designed for riders who want maximum stability, power, and versatility. With a 100L board, 6,000W motor, 30+ mph top speed, and support for riders up to 265 lbs, it delivers confidence-inspiring performance from your first ride through advanced progression.
The Escape is a lighter, more compact performance board built for riders who prioritize agility and value. Its 80L platform, 5,000W motor, and 28 mph top speed make it exceptionally nimble, responsive, and easy to transport, while still delivering premium XFoil technology.
For most new riders, we recommend the Apex because the larger platform provides more stability and a wider operating range. The Escape is ideal for lighter riders, experienced riders, or anyone seeking a more playful, carve-focused ride.
Do I need experience to ride the Apex?
No. The Apex is designed to accommodate riders from beginner to expert. Its larger 100L platform provides excellent stability and buoyancy, making it easier to learn than smaller performance-focused boards.
For first-time riders, we recommend starting in calm, open water and progressing at your own pace. As your skills develop, the Apex grows with you through its powerful 6,000W drivetrain, advanced ride configurations, and optional performance upgrades.
Whether you're taking your first flight or pushing your limits with aggressive carving and high-speed runs, the Apex is built to support every stage of your progression.
How long does shipping take and where do you ship?
We ship worldwide directly from our facility in Asia, with orders processed and dispatched within 1-2 days of receipt for in stock items. All orders include tracking. VAT/GST may apply based on your country.
What does the 1-year warranty cover?
The comprehensive manufacturer's warranty covers defects in materials and workmanship on all components. We also offer a 100% satisfaction guarantee — if you're not happy, contact us and we'll make it right.
Can I upgrade my package after purchase?
Yes, the XFoil is engineered with a completely modular architecture designed for maximum service, replacement, and upgrade flexibility. Rather than owning a static system, you can easily upgrade to larger battery packages, replace worn components, swap wings for different riding dynamics, or add new accessories over time as your skills evolve.
Every major component uses a straightforward, bolt-on design. In the rare event that a component requires service or replacement, you only need to swap out that specific part. Because individual parts are easily detached, the large board hull never has to be shipped back to a service center, keeping logistics simple, fast, and highly cost-effective.
